- Product Name: Band Knife Cutting Machine
- Model NO.: KT-700-900-1200
- Origin: CHINA
- Packing: WOODEN CASE
- Brand Name: KUTEX
- Delivery Time: 7DAYS
- Minimum Order: 1 PC
-
Product Details: Band Knife Cutting Machine
Band Knife Cutting Machine
1.Regulative cutting speed, the user can adjust various cutting speeds according to different fabrics. cloth cutter, strap knife cutter
2.It is attached with a special air-floated blowing device to reduce the excess resistance formed between the cutting sheet weight and cutting table. It makes more mobile for cutting sheet and more precise cutting for small cutting sheets.
3.An additional material is matched to keep the cutter under certain temperatures. The roller uses anti-Wear rubber to easily fix the cutter with no snake-like deviation. In this way, it prolongs the cutter life.
4.Extremely easy cut removal which is fit for any ordinary person.
5.It is attached with a grinding device to ensure constant sharp of the cutter. Cloth cutter, strap knife cutter
The main performances & parameters
Model | KT700 | KT900 | KT1200 |
Table Size | 1200*1800mm | 1500*2100mm | 1500*2400mm |
Table Height | 800-850mm | 1500*2100mm | 1500*2400mm |
Max. Cutting thickness | 180mm | 200mm | 250mm |
Max. Cutting span | 700mm | 900mm | 1200mm |
Speed Control | Variable Speed Control 10-15m/s | Variable Speed Control 10-15m/s | Variable Speed Control 10-15m/s |
Strap Specification (L*W*T) |
3590*10*0.45 mm |
4005*10*0.45 mm |
4560*10*0.45 mm |
Power Supply | Three-Phase | Three-Phase | Three-Phase |
Weight | 265kg | 285kg | 340kg |
Packing Size |
1930*830*1830 mm |
1980*880*1860 mm |
2500*880*1860 mm |
-

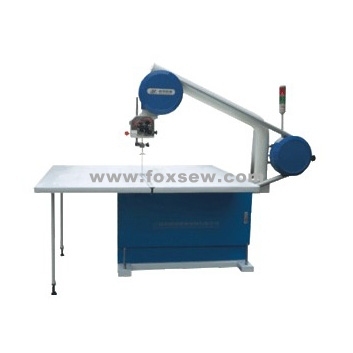

Product Images: Band Knife Cutting Machine
-
Band Knife Cutting Machine
-
