- Product Name: Automatic Cutting Machine with Punching Hole and Collecting Device
- Model NO.: KT-150L
- Origin: CHINA
- Packing: WOODEN CASE
- Brand Name: KUTEX
- Minimum Order: 1 PC
- Quality System Certification: CE
-

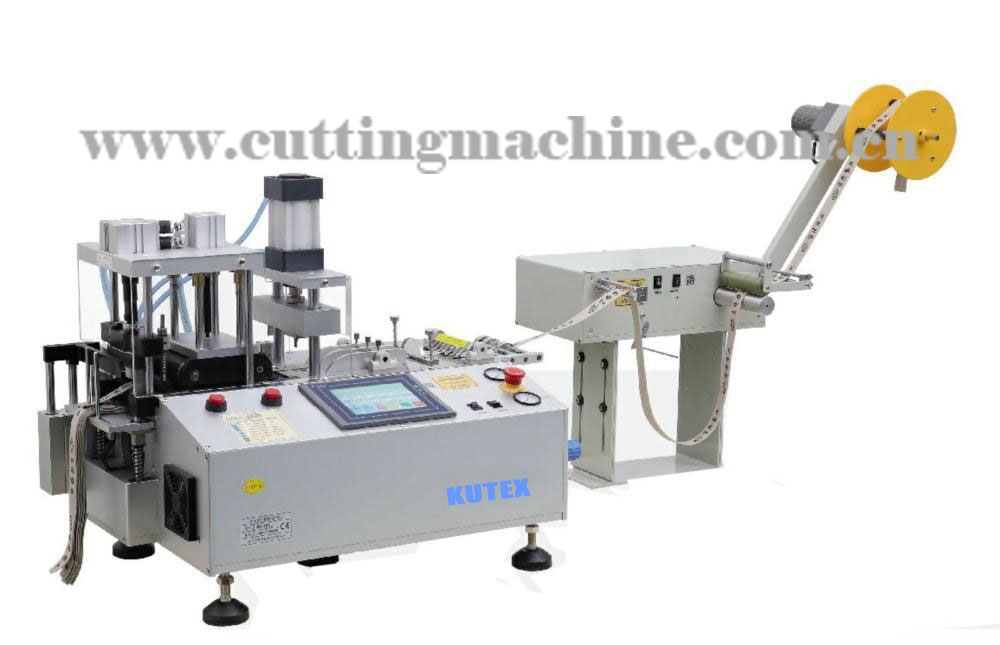

Product Details: Automatic Cutting Machine with Punching Hole and Collecting Device
KUTEX Automatic Tape Cutting Machine Cold Knife Multi-function with Punching Hole and Collecting Device
Applications: All kinds of Woven Belt, Webbing, Ribbon Tapes, Zippers, Leather Belts, VELCRO, Shoelace, Plastic Soft Tube, Computer Cable, Labels, etc...
High Speed: It can cut 80-100 pcs per minute (e.p. 100mm long, with collecting device).
Accuracy: Cut-length is accurate owing to a stepping motor. A sensor makes cut-length accurate by automatic sensing at set-position.
Collecting Function: Setting the quantity, it will be collecting automatically, so that clients can be easily packed.
Punching Device: According to the needs of users, it can punching different size of the diameter of holes.
Cutting Type: The blade is made of high quality steel. to make sure the cutting surface neatly and not frayed.
Automatic Operation: It works automatically only by setting length, quantity.
Computerized: Automatic work and stop, The special fault by self-diagnosis. Direct show the fault problem on the screen, it will easy for you to find clear way to repair.
Automatic Stopper: It stops automatically if materials run out during operation.
Memory: Set-length, set quantity and set speed are not erased even if power off and on.
Cutting Samples:
Specifications:
Model No.: | KT-150L |
Cutting Length (mm) | 20-99999 |
Max.Cutting Width (mm) | 100 |
Voltage | 110/220V |
Punching Hole Diameter | 2-5 mm |
Recommended Presser (Mpa) | 20-50 |
Max.Collecting Height (mm) | 40 |
Weight | 78 Kgs |
Packing Size | 80x57x62cm |
Power | 0.25KW |
100mm Cutting Speed (p/min) | 100pcs |
-
